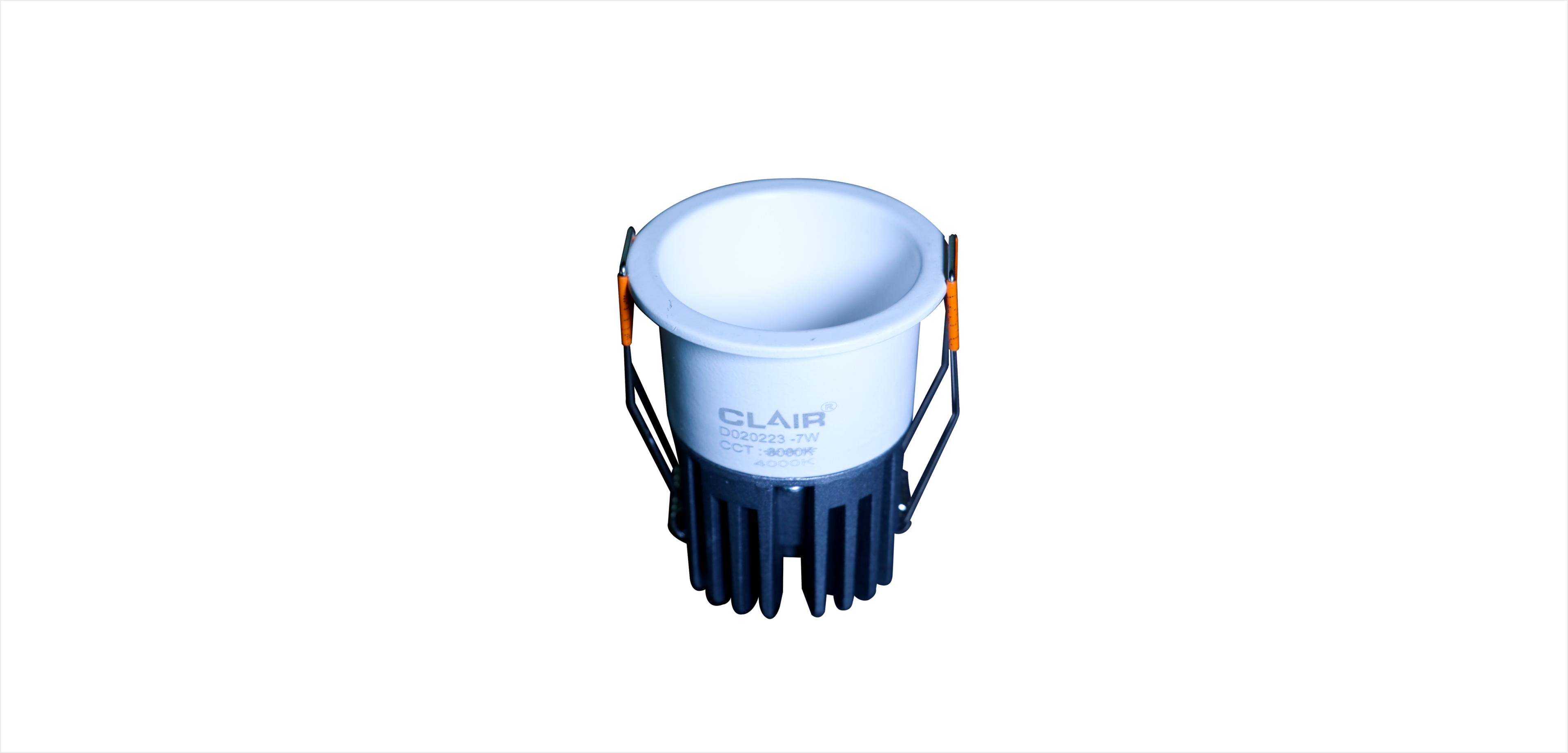

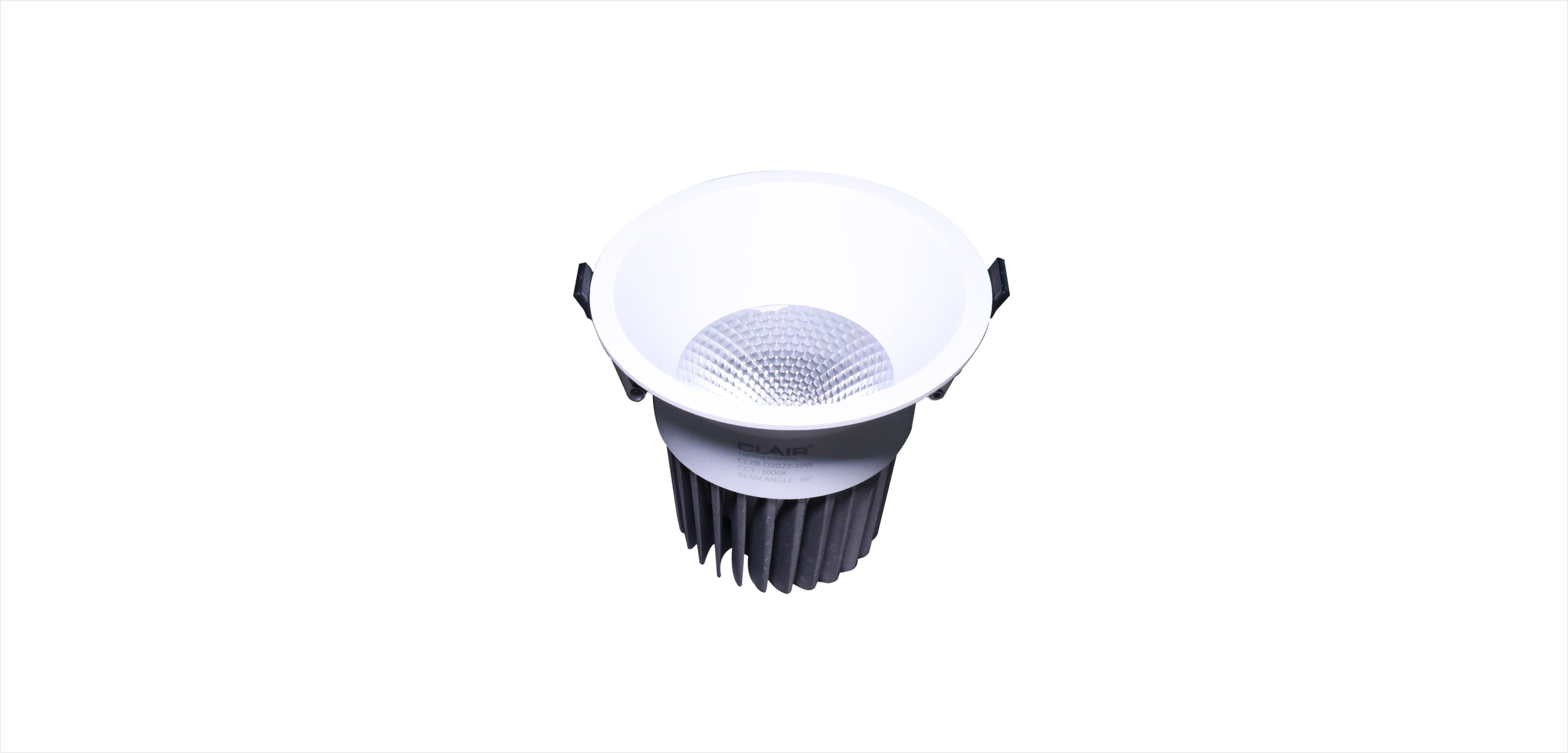

Super Nova
Features & Benefits
Housing aluminium die cast.
Beam Angle 45º
No harmful UV & IR radiations
Environment-friendly as it
does not contain Mercury
Instant light with low
running temperatures
Operating temperature :
-10° C to +45° C
Operating voltage range :
90 - 300 vac
Long life :
50000 hours
Technical Specifications
| Wattage | 07W | 12W | 20W | 30W |
|---|---|---|---|---|
| Product Code | CLD02022305W | CLD02022310W | CLD02022315W | CLD02022320W |
| DIMENSION Cutout (mm) | 49.60 | 70.50 | 85 | 83.50 |
| Body Color | White | White | White | White |
| Voltage | 90-300Vac, 50Hz | 90-300Vac, 50Hz | 90-300Vac, 50Hz | 90-300Vac, 50Hz |
| Power Factor | >0.90 | >0.90 | >0.90 | >0.90 |
| Total Lumen | NA | NA | NA | NA |
| System Lumen(LM/W) | 100 - 110 | 100 - 110 | 100 - 110 | 100 - 110 |
| CRI | >80 | >80 | >80 | >80 |
| CCT | NA | NA | NA | NA |
| Beam Angle | 45º | 45º | 45º | 45º |
| Housing Material | Housing aluminium die cast. | Housing aluminium die cast. | Housing aluminium die cast. | Housing aluminium die cast. |
| Color Temperature |  | | | |
