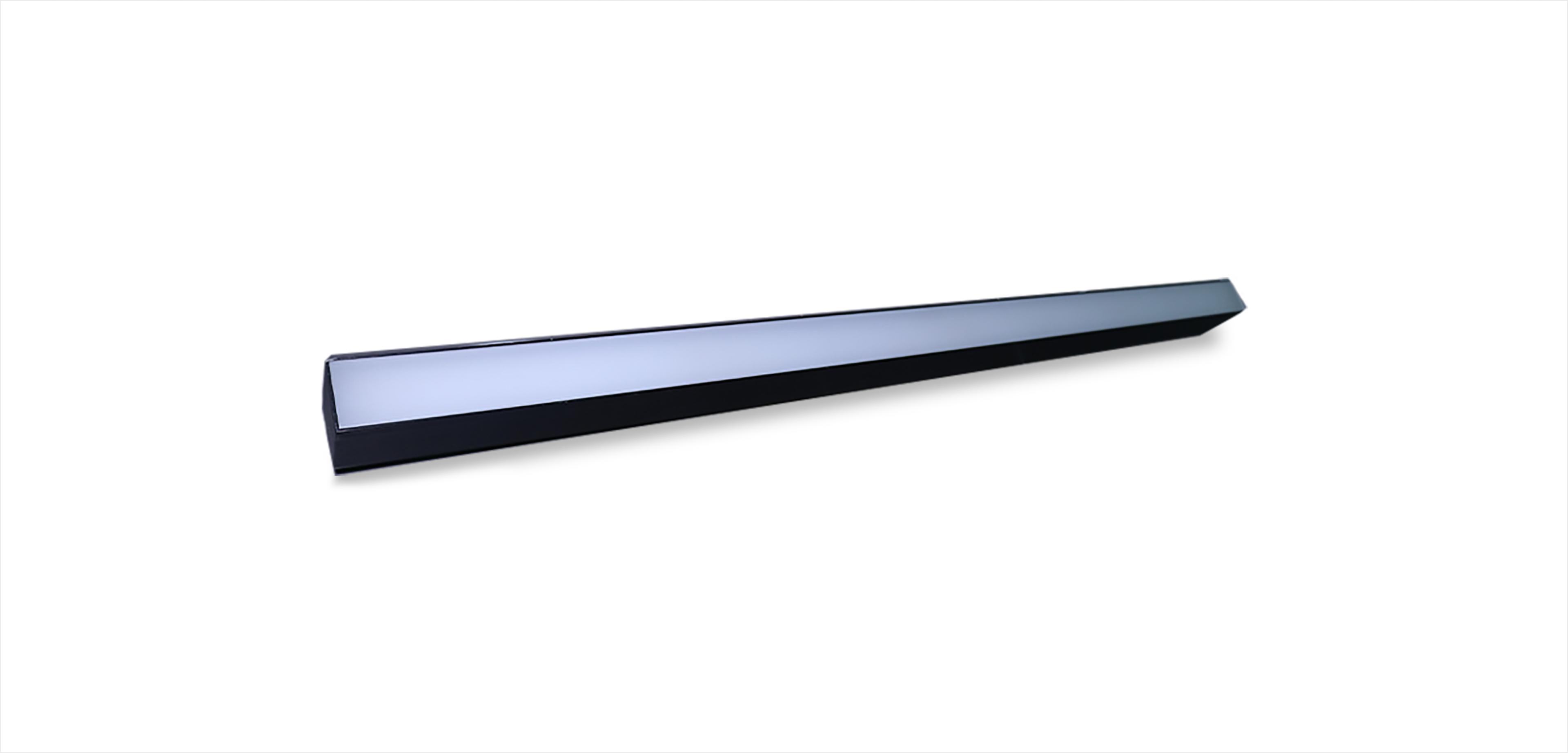

LINUS Recessed Mounted Linear

Suspended linear in sleek design comes with multiple dimensions is suitable for all commercial spaces.

Features & Benefits

Icon 1

Delivers excellent illumination

& comfort

Icon 2

Long life & photobiologically

safe LEDs

Icon 3

High performance electronic

driver ensures zero

maintenance

Icon 4

No harmful UV & IR radiations

Icon 6

Environment-friendly as it

does not contain Mercury

Icon 7

Instant light with low

running temperatures

Icon 8

Operating temperature :

-10° C to +45° C

Icon 9

Operating voltage range :

120 V - 300 V

Icon 10

Average life L70B50:

50000 hours

Icon 3

Continuous, stand alone

Installation option

Icon 2

Architectural shapes available-

“X”, “+”, “Y” & “L” on request.

Technical Specifications

Wattage36W
Product CodeCLLR36W
Dimension (mm)LXWXH (1200mmx55mmx35mm)
Cutout/Pole Dia (mm)55MM
Body ColorBlack/White
Operating Voltage220 - 240
Power Factor>0.9
Total Lumen3600
Lumen Efficacy(LM/W)100
CRI>75
CCT6500K
Beam AngleNA
Housing MaterialCRCA
Color Temperature
