Estrells Series

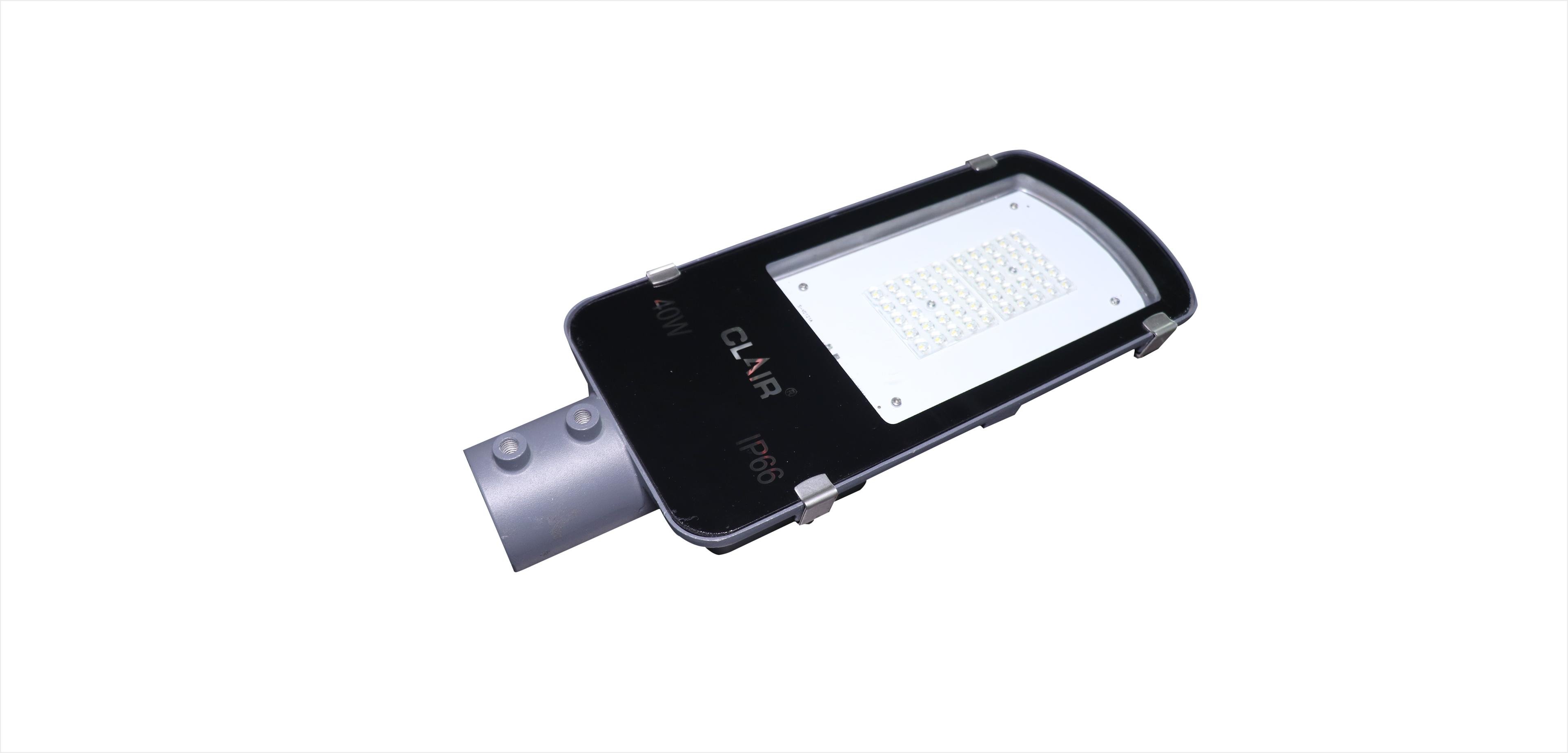

New generation energy saving and environmental friendly long life LED street light made up of pressure die cast aluminium housing with high power LED as lighting source and lens embedded PC cover having TOP Opening seperate driver compartment with IP66 protection and impact resistance of IK 07.
Features & Benefits
Delivers excellent illumination
Long life & photobiologically
safe LEDs
High performance electronic
driver ensures zero
maintenance
No harmful UV & IR radiations
Ambient temp ta:
35° C
Environment-friendly as it
does not contain Mercury
Instant light with low
running temperatures
Operating temperature :
-10° C to +50° C
Operating voltage range :
120 V - 300 V
Average LED life :
50000 hours
Technical Specifications
| Wattage | 24W | 30W |
|---|---|---|
| Product Code | CL24WLD09STSHZB6K | CL30WSTN |
| Dimension (mm) | (LXWXH) 322x114x50MM | (LXWXH) 322x114x50MM |
| Cutout/Pole Dia (mm) | 40MM | 40MM |
| Body Color | Black | Black |
| Operating Voltage | 220 - 240 | 220 - 240 |
| Power Factor | >0.9 | >0.9 |
| Total Lumen | 2400 | 3000 |
| Lumen Efficacy(LM/W) | 100 | 100 |
| CRI | >75 | >75 |
| CCT | 6500K | 6500K |
| Beam Angle | 85° / 135° | 85° / 135° |
| Housing Material | Aluminium Pressure Die Casted Housing With Powder Coating | Aluminium Pressure Die Casted Housing With Powder Coating |
| Color Temperature |  | |
