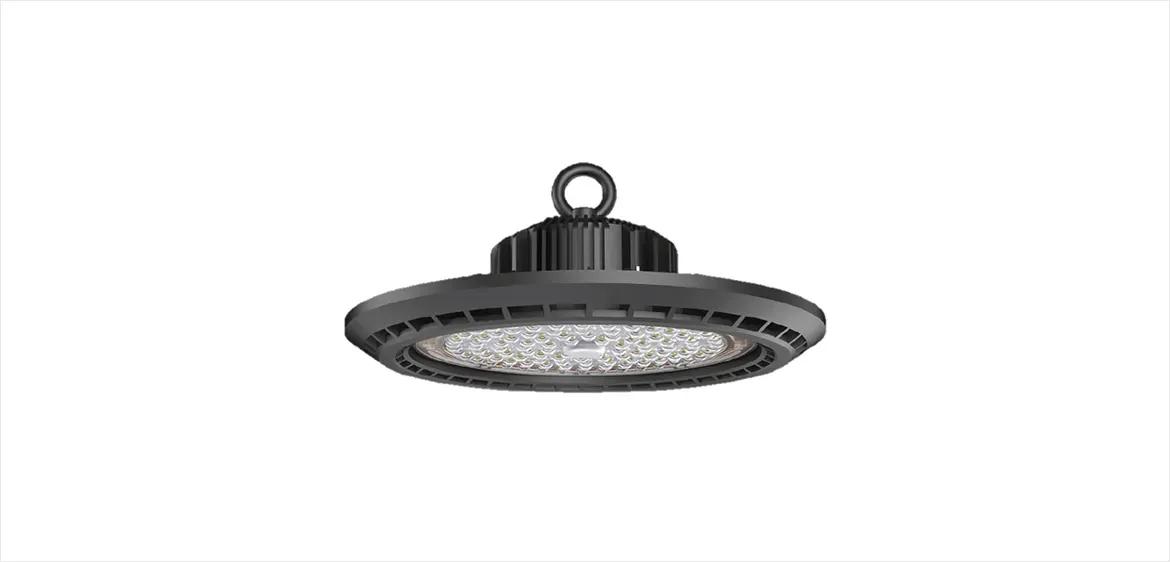

UFO Highbay
Energy saving, environment friendly & robust Mediumbay / Highbay LED luminaire with high efficacy
Features & Benefits
Better lumens & longer lamp life
High efficacy & lower power
consumption
Delivers high brightness &
excellent illumination
No harmful UV & IR radiations
Environment-friendly as it
does not contain Mercury
Instant light with low
running temperatures
Operating temperature :
-10° C to +45° C
Operating voltage range :
120 V - 300 V
Average LED life :
50000 hours
Technical Specifications
| Wattage | 100W | 150W |
|---|---|---|
| Product Code | CL100WUFO | CL150WUFO |
| Dimension (mm) | (LXWXH) 277x277x172MM | (LXWXH) 318x318x190MM |
| Cutout/Pole Dia (mm) | NA | NA |
| Body Color | Black | Black |
| Operating Voltage | 220 - 240 | 220 - 240 |
| Power Factor | >0.9 | >0.9 |
| Total Lumen | 10000 | 15000 |
| Lumen Efficacy(LM/W) | 100 | 100 |
| CRI | >75 | >75 |
| CCT | 6500K | 6500K |
| Beam Angle | 90° | 90° |
| Housing Material | Aluminium Pressure Die Casted Housing With Powder Coating | Aluminium Pressure Die Casted Housing With Powder Coating |
