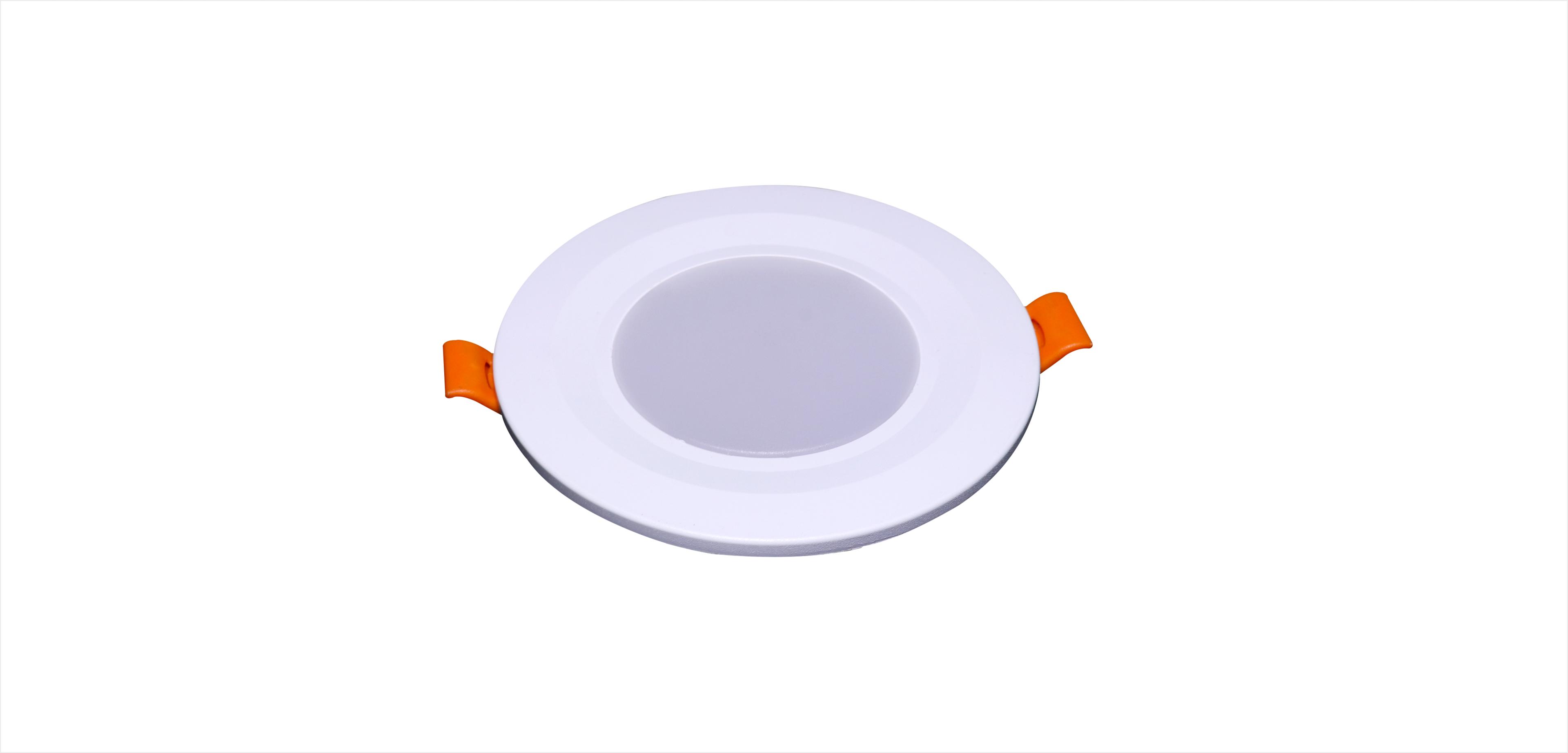

Conceal - Downlight
Features & Benefits
Long life & photobiologically
safe LEDs
No harmful UV & IR
radiations
Working temperature :
-10° C to 45° C
Environment-friendly as it
does not contain Mercury.
Instant light with low
running temperatures
Operating temperature :
-10° C to +45° C
Operating voltage range :
90- 300Vac
Long life :
25000 hours
Technical Specifications
| Wattage | 03W | 03W | 03W | 03W | 05W | 05W | 07W | 07W | 09W | 09W |
|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | CSK03W | CSK03W | CLCE03W | CLCE03W | CLCE05W | CLCE05W | CLCE07W | CLCE07W | CLCE09W | CLCE09W |
| Input | 90~300Vac | 90~300Vac | 90~300Vac | 90~300Vac | 90~300Vac | 90~300Vac | 90~300Vac | 90~300Vac | 90~300Vac | 90~300Vac |
| Power Factor | >0.90 | >0.90 | >0.90 | >0.90 | >0.90 | >0.90 | >0.90 | >0.90 | >0.90 | >0.90 |
| System Lumen | 100Lm/W | 100Lm/W | 100Lm/W | 100Lm/W | 100Lm/W | 100Lm/W | 100Lm/W | 100Lm/W | 100Lm/W | 100Lm/W |
| CCT | 4KV | 4KV | 4KV | 4KV | 4KV | 4KV | 4KV | 4KV | 4KV | 4KV |
| CRI | >80 | >80 | >80 | >80 | >80 | >80 | >80 | >80 | >80 | >80 |
| DIMENSIONS Cutout (mm) | 58MM | 58MM | 58MM | 58MM | 78MM | 78MM | 78MM | 78MM | 78MM | 78MM |
| DIMENSIONS Outer (mm) | 80x83 | 80x83 | 80x83 | 80x83 | 110X54 | 110X54 | 110X54 | 110X54 | 108X60 | 108X60 |
| Housing Material | Housing Virgin Polycarbonate (Unbreakable), Long Lasting Unfade Colour. | Housing Virgin Polycarbonate (Unbreakable), Long Lasting Unfade Colour. | Housing Virgin Polycarbonate (Unbreakable), Long Lasting Unfade Colour. | Housing Virgin Polycarbonate (Unbreakable), Long Lasting Unfade Colour. | Housing Virgin Polycarbonate (Unbreakable), Long Lasting Unfade Colour. | Housing Virgin Polycarbonate (Unbreakable), Long Lasting Unfade Colour. | Housing Virgin Polycarbonate (Unbreakable), Long Lasting Unfade Colour. | Housing Virgin Polycarbonate (Unbreakable), Long Lasting Unfade Colour. | Housing Virgin Polycarbonate (Unbreakable), Long Lasting Unfade Colour. | Housing Virgin Polycarbonate (Unbreakable), Long Lasting Unfade Colour. |
